Acti9 Auxiliary Contact iOF A9A26904 - Schneider Electric

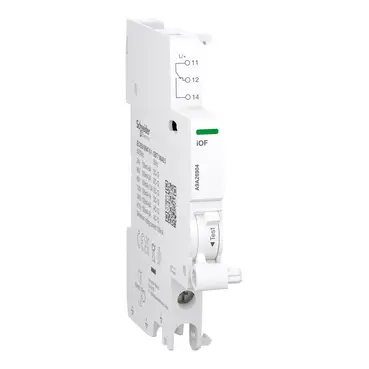

The Schneider Electric Acti9 A9A26904 is an iOF auxiliary contact that tells you whether a circuit breaker is open or closed. It has one changeover contact, so you can send a signal to a panel light, a PLC input or a control circuit. The contact works from 100mA to 6A and handles 24 to 415V AC and 24 to 130V DC, which covers most low voltage control circuits. It clips onto the left side of the protection device on a DIN rail. It is only 9mm wide, so it adds very little space to the row. The A9A26904 fits Acti9 iC60, iC60 RCBO, iID, iDPN Vigi, iC40 and iSW-NA devices, and it works with the comb busbar on top. Wires go into screw terminals at the bottom, and it takes cables up to 4mm². The contact is rated IP20 and works in temperatures from minus 35 to 70 degrees Celsius. It meets IEC 60947-5-1 and carries CE and UKCA marks.
What the A9A26904 Does
- Shows whether the device next to it is open or closed
- Gives you an electrical signal you can send to a panel light, PLC or alarm circuit
- Has one changeover (C/O) contact, which means one set of contacts that can work as normally open or normally closed
- Fits on the side of the breaker, so no extra wiring box is needed
Technical Specifications of Acti9 Auxiliary Contact
- Range: Acti9
- Device short name: iOF
- Contact type: 1 C/O (changeover)
- Rated current: 100mA to 6A
- Voltage: 24 to 415V AC (50/60Hz), 24 to 130V DC
- Rated insulation voltage (Ui): 500V
- Rated impulse withstand voltage (Uimp): 4kV
- Size: 86mm high, 9mm wide, 73mm deep (1 module of 9mm)
- Weight: 32g
- Colour: White
- Connection: screw terminals at the bottom
Electrical Ratings by Voltage
- 24 to 240V AC: 0.1A to 6A
- 415V AC: 0.1A to 3A
- 24V DC: 0.1A to 6A
- 48V DC: 0.1A to 2A
- 60V DC: 0.1A to 1.5A
- 130V DC: 0.1A to 1A
Key Features of Acti9 Auxiliary Contact
- Clip-on fitting, no tools needed to attach it to the breaker
- Slim 9mm body that saves space on the DIN rail
- Works on both AC and DC control circuits
- Compatible with the comb busbar on the top side
- Takes 1 cable of 1 to 4mm² (rigid) or 0.5 to 2.5mm² (flexible), or 2 cables of up to 2.5mm² (rigid)
- Made for low current signalling, from 100mA
Compatible Acti9 Devices
- Acti9 iC60 circuit breakers
- Acti9 iC60 RCBO
- Acti9 iID residual current circuit breakers
- Acti9 iDPN Vigi
- Acti9 iC40
- Acti9 iSW-NA switch disconnectors
- Acti9 ARA and RCA
- For single terminal versions of these devices (compatibility code: IOF)
Installation Guide of Acti9 Auxiliary Contact
- Switch off the power and make sure the circuit is dead before you start
- Mount the circuit breaker on the DIN rail
- Clip the A9A26904 onto the left side of the breaker
- Strip 10mm of insulation from the wire
- Push the wire into the bottom terminal and tighten it to 1 N.m
- Switch the power back on and check the signal at your panel light, PLC or alarm
- Electrical work should be done by a qualified electrician
Where It Is Used
- Distribution boards in small commercial buildings and offices
- Control panels that need to show breaker status
- Remote monitoring of whether a circuit is on or off
- Panels where a PLC or building system reads breaker position
Standards and Certifications
- Standard: EN/IEC 60947-5-1 and GB/T 14048.5
- Marks: CE and UKCA
- Quality labels: EAC, CCC and CMIM
- Protection degree: IP20
- Operating temperature: -35°C to 70°C
- Storage temperature: -40°C to 85°C
- Humidity: up to 95% at 55°C
Package Includes
- 1 x Acti9 iOF auxiliary contact A9A26904
Why Buy From Sensato Trade
- You get the original Schneider Electric part. The part you receive is genuine and fully compatible.
- You get customer support that is ready to help if you are not sure about compatibility or have any other questions about the product.
- Fast and secure delivery is available, across Pakistan.
- Sensato Trade is a seller who truly understands industrial parts.
- We offer a refunds and returns policy if the product does not match your needs or if there is a compatibility issue.
Frequently Asked Questions
Q1: What does 1 C/O mean?
It means one changeover contact. One set of contacts can be used as either normally open or normally closed in your circuit.
Q2: What is the difference between iOF and iSD?
The iOF contact shows whether the device is open or closed. The iSD contact is used to signal that the device has tripped because of a fault.
Q3: Which devices does the A9A26904 fit?
It fits single terminal Acti9 iC60, iC60 RCBO, iID, iDPN Vigi, iC40 and iSW-NA devices, and it clips onto the left side.
Q4: Can I use it on DC circuits?
Yes. It works from 24 to 130V DC, but the allowed current gets lower as the DC voltage goes up.
