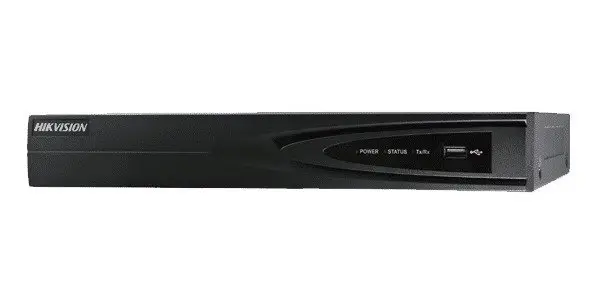

Hikvision 16-Channel Network Video Recorder

The Hikvision DS-7616NI-E2/8P Network Video Recorder (NVR) is designed to manage and record video from up to 16 IP security cameras. With eight built-in PoE ports, it allows users to connect and compatible cameras directly through the recorder, simplifying installation and reducing the need for separate PoE equipment.

This Hikvision NVR supports recording resolutions of up to 6MP, offers 160 Mbps incoming bandwidth, and includes HDMI and VGA outputs for local monitoring. Its two SATA ports provide storage flexibility for recording and reviewing surveillance footage.

Features of 16 Channel Network:

• Connect and manage up to 16 network cameras.
• Power and connect up to eight cameras directly to the NVR.
• Up to 6MP Recording Support
• 160 Mbps Incoming Bandwidth
• Supports two internal hard drives for surveillance recording storage.
• HDMI and VGA Outputs
• Helps to manage video storage and network bandwidth.
• Review recorded footage to investigate incidents and events.

16 Channel Surveillance NVR:

The DS-7616NI-E2/8P allows users to manage up to 16 IP cameras through a recording system. This makes it easier to monitor different areas of a property without operating separate recording devices for each camera.

Video Recording and Storage:

The DS-7616NI-E2/8P supports recording resolutions up to 6MP for camera streams. Its H.264 and H.264+ options help to manage recording file sizes and storage requirements. Two SATA interfaces allow the installation of up to two hard drives. Supports the hard drive of up to 6TB each. Actual recording duration depends on the number of cameras, image resolution, frame rate, and compression settings.

Monitoring Through HDMI and VGA:

The NVR provides HDMI and VGA video outputs for connecting a monitor. These interfaces allow users to view live camera feeds, access menus, and review recordings easily. Provides display output resolutions up to 1920 × 1080 at 60Hz. This is a Full HD display output, even when the recorder is handling camera streams at higher recording resolutions.

Network Connectivity and Remote Access:

The 16 channel NVR includes a Gigabit Ethernet network interface for connection to a suitable network. The network function helps the administrators to manage the recorder, monitor connectivity, and surveillance footage through software and network connections. The recorder's network include TCP/IP, DHCP, DNS, DDNS, NTP, SMTP, NFS, iSCSI, UPnP, HTTPS, and SSH.

Recommended Usage Areas:

• Retail Stores: Monitor entrances, checkout areas, and sales floors.
• Office Buildings: Manage surveillance across reception areas, corridors, and workspaces.
• Warehouses: Record activity in storage areas, loading zones, and access points.
• Commercial Buildings: Manage security cameras across multiple floors or designated areas.

Installation Setup for Hikvision NVR:

1. Confirm the number and resolution of the IP cameras you want to connect.
2. Connect up to eight compatible cameras directly to the recorder.
3. Use a suitable external network switch for additional cameras.
4. Install SATA hard drives for the recording schedule.
5. Connect a monitor through HDMI or VGA for setup.

Why Buy from Sensato Trade?

You should buy products from Sensato Trade which offers a genuine products at a reasonable prices. Experience the secure online shopping with fast delivery. Sensato Trade offers a reliable customer support which is available at 24/7.

Frequently Asked Questions

1. How many cameras can it support?
It supports up to 16 IP camera channels.

2. How many built-in PoE ports does it have?
It has eight built in PoE ports for connecting cameras directly.

3. Can I connect more than eight cameras?
Yes, additional cameras can be connected through a network switch.

4. Does the NVR support 4MP cameras?
It supports recording resolutions up to 6MP for streams.

5. What is its incoming bandwidth?
The incoming bandwidth is 160 Mbps.
