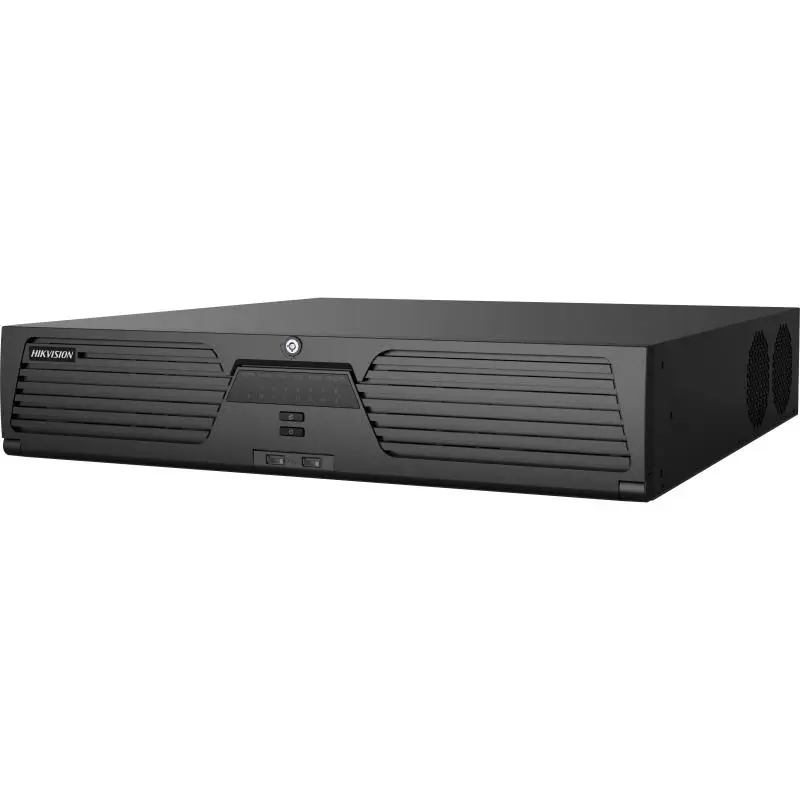

Hikvision DS-9664NXI-i8s (64-Channel Pro NVR)
This NVR carries the same 64-channel capacity as the base model, with more processing power built in for larger networks running higher-resolution cameras across the board. It is a strong pick for installations expecting to scale up in the future.The Hikvision DS-9664NXI-I8s is a 64-channel 2U 4K AcuSense Network Video Recorder (NVR) featuring deep learning analytics, facial recognition, perimeter protection, and support for up to 8 SATA hard drives for robust enterprise surveillance storage.
- Buy now this original Hikvision DS-9664NXI-i8s Pro NVR from Sensato Trade Platform. For more options like this visit Sensato Trade Platform.
Hikvision DS-9664NXI-i8s NVR - Specifications
- IP Video Input: 64 channels up to 12 MP resolution
- Decoding Capacity: Up to 16-ch at 1080p (30 fps) or 1-ch at 32 MP
- Video Compression: H.265+, H.265, H.264+, H.264
- Output Resolutions: Independent HDMI (up to 4K) and VGA outputs
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 256 Mbps
- SATA Interfaces: 8 SATA interfaces supporting up to [10 TB+] capacity per drive
- RAID Support: Select firmware/variants support flexible storage configurations
Smart & AI Analytics (AcuSense)
- Facial Recognition: Up to 4-ch for video stream analysis, or up to 8-ch for face picture comparison
- Perimeter Protection: Up to 4-ch cross-line detection and intrusion detection based on deep learning
- Motion Detection: Motion Detection 2.0 across enabled channels to reduce false alarms
- Ethernet Ports: 2 self-adaptive 10/100/1000 Mbps RJ-45 interfaces
- USB Ports: Front panel (2 × USB 2.0), Rear panel (1 × USB 3.0)
- Serial Interfaces: RS-485, RS-232
Hikvision DS-9664NXI-i8s NVR - Features
Core Performance and Recording
- Camera Support: Connects up to 64-ch IP cameras with recording resolution up to 12 MP or 32 MP depending on mode configuration.
- Decoding Capacity: Delivers up to 16-ch at 1080p (30 fps) decoding performance.
- Video Formats: Encodes and decodes using H.265+, H.265, H.264+, and H.264 standards.
- Bandwidth: Handles 320 Mbps incoming and 256 Mbps outgoing bandwidth.
Intelligent Analytics (AcuSense & Deep Learning)
- Perimeter Protection: Up to 4 channels of human and vehicle target recognition to drastically reduce false alarms.
- Facial Recognition: Compares face pictures up to 4-ch via face capture, or processes 1-ch face recognition through a live video stream.
- Face Libraries: Stores up to 16 face picture libraries containing a total of up to 10,000 face images.
- Movement Detection 2.0: Standard on enabled channels for accurate motion analysis.
- Hard Drives: 8 SATA interfaces to support large capacity HDDs.
- Movement Detection: 2.0
- Network & Outputs: Independent HDMI and VGA outputs for driving displays up to 4K resolution Multiple USB ports and serial communication interfaces (RS-232, RS-485)
Setup
To set up your Hikvision DS-9664NXI-I8s NVR, connect the hardware peripherals (mouse, monitor via HDMI/VGA, and network cables), power on the unit, follow the on screen startup wizard to create a strong password, initialize your hard drives, and link the device to your network and mobile app.
- Hard Drives: Open the 2U chassis lid and install surveillance-grade SATA hard drives (up to 8 drives supported) into the bays, securing them with screws and connecting the SATA/power cables.
- Peripherals: Connect the included USB mouse to a USB port and connect a monitor with an HDMI or VGA cable.
- Network & Cameras: Connect the NVR’s LAN port to the internet router using the Ethernet cable. Plug your IP cameras to your local network switch or direct external PoE injectors (this model does not have PoE ports built-in).
- Power: Plug in the power cord and turn on the power.
- Language & Settlement: Choose the language you want to display and the resolution of the output.
- Secure Administrator Password: Set a strong administrator password using mixed characters and set an unlock pattern for easy login. Choose a rescue email or security questions to recover password.
- Time & Date: Choose your exact time zone and date format and enable NTP (Network Time Protocol) to get accurate synchronized timestamps.
- Network Settings: Keep DHCP enabled so the NVR will automatically get a valid local IP address from the router.
Adding Cameras and Storage
- HDD initialization: Next, go to the storage or hard disk menu, and select the new hard disk you installed. Before recording, click Init (Initialize) to format the new hard disk. Wait for it to get to 100%.
- Add IP Cameras: Go to Camera Management and scan the list of Online Devices. Select your active cameras and click Add. Enter individual camera activation passwords when prompted.
Remote Access Configuration
- Platform Access: Enable the Hik-Connect service in the network settings menu and create a verification code.
- Mobile Pairing: Download the Hik-Connect app on your smartphone, scan the QR code displayed on the NVR monitor screen, and input your verification code to view feeds remotely
Why Buy From Sensato Trade Platform
· Genuine Hikvision unit, checked before dispatch
· Fair pricing with no inflated brand markup
· Fast order processing and real support if setup questions come up
· Stock picked to match what serious CCTV installers in Pakistan actually need
Frequently Asked Questions
Q1: What's the difference between this and the DS-8664 series?
It gives you more processing headroom for larger, higher resolution camera networks.
Q2: Is it RAID compatible?
That depends on the configuration , check the model specs.
Q3: How many channels?
64 channels.
Q4: Will it work with other manufacturer cameras?
Yes, if they are ONVIF compliant.
